TRO-R 28000-324000 GPD
Tap/Well Water Reverse Osmosis Systems

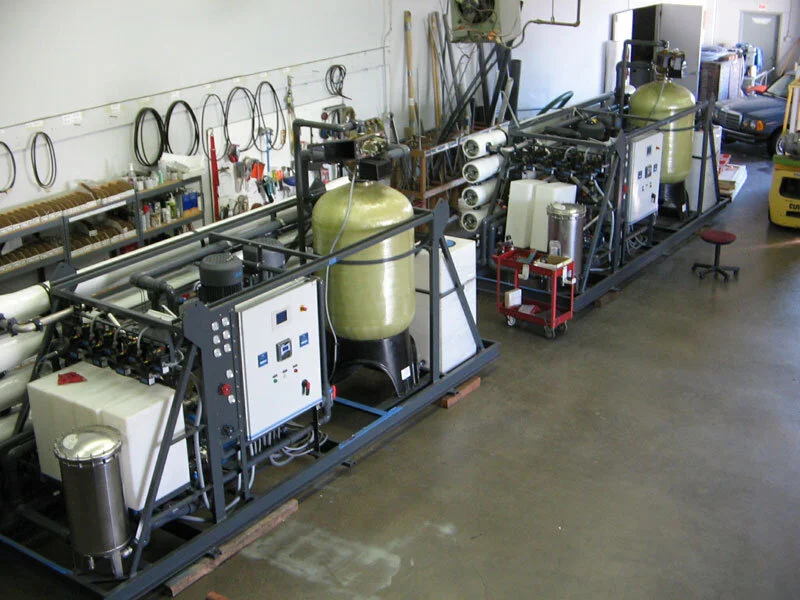

Rugged, economical and compact commercial TRO-R reverse osmosis systems purify water for applications for feedwater up to 1500 ppm TDS. The units are frame mounted and include 5 micron cartridge filtration, reverse osmosis unit, membrane cleaning system and crating. The highest quality components have been selected for the rugged duty that is required for the water purification applications for commercial and industrial use of the TRO-R systems. Higher capacity systems are available on request.
| MODEL # | GPD | TPD | Membranes | Recovery | Dimensions (H x W x D) |
Weight |
|---|---|---|---|---|---|---|
| TRO 28KR | 28,000 | 106 | 4 | 50% | 66 x 110 x 60 | 2800 lb |
| TRO 43KR | 43,200 | 163 | 6 | 70% | 66 x 110 x 60 | 3200 lb |
| TRO 64KR | 64,800 | 245 | 9 | 70% | 66 x 110 x 60 | 3600 lb |
| TRO 115KR | 115,200 | 436 | 16 | 70% | 72 x 132 x 60 | 5600 lb |
| TRO 144KR | 144,000 | 545 | 20 | 70% | 72 x 132 x 60 | 7900 lb |
| TRO 200KR | 201,600 | 763 | 28 | 70% | 72 x 132 x 60 | 12500 lb |
| TRO 252KR | 252,000 | 955 | 34 | 70% | 72 x 240 x 72 | 18900 lb |
| TRO 288KR | 288,000 | 1090 | 45 | 70% | 72 x 240 x 72 | 19500 lb |
| TRO 324KR | 324,000 | 1227 | 48 | 70% | 72 x 240 x 72 | 21000 lb |
